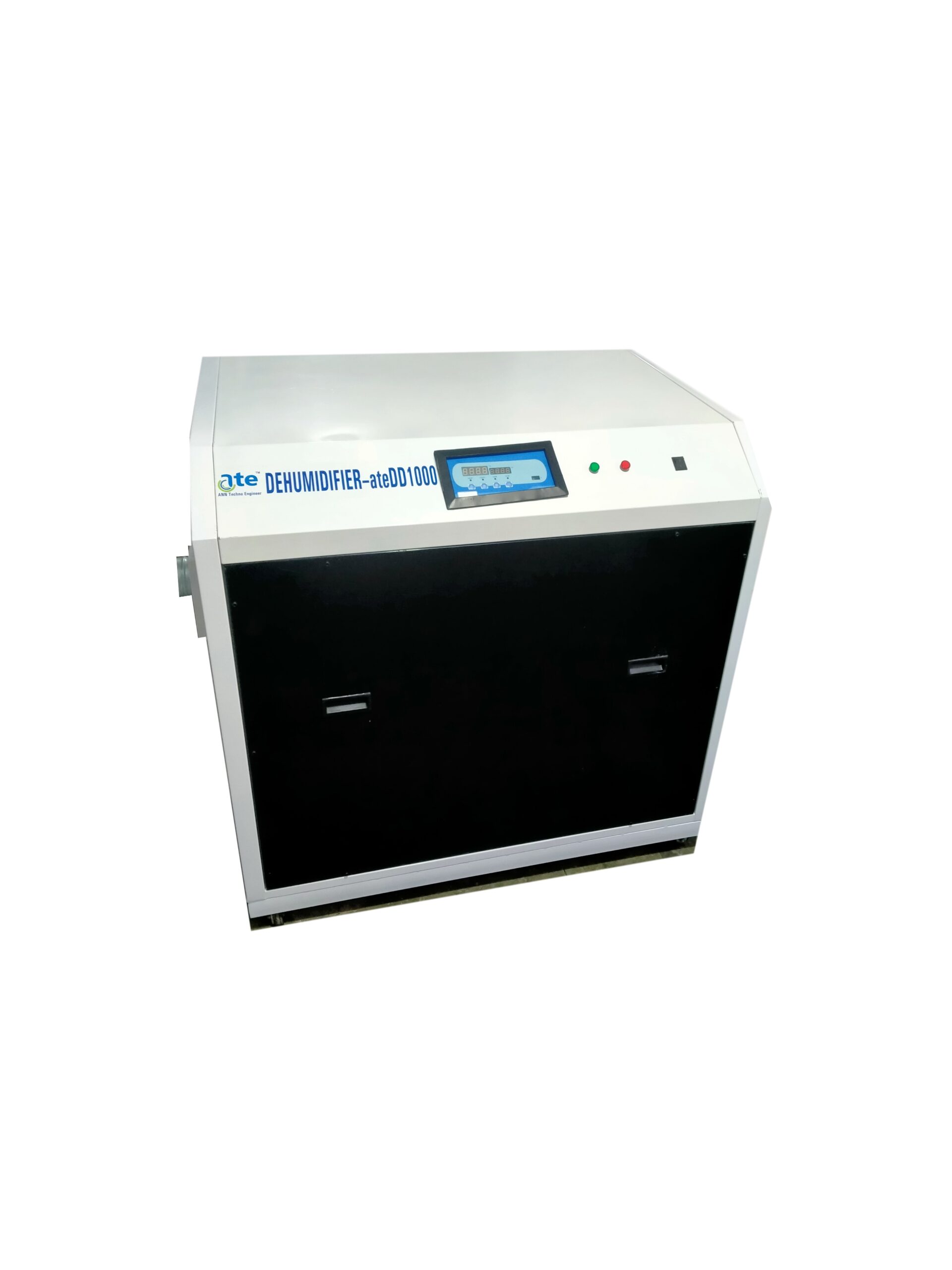

Desiccant Dehumidifier ateDD1000

DISCRiption

Model

ateDD1000

Dehumidifying capacity

5.1 kg/h

Process air flow

1050m3/h

Reactivation air flow

350m3/h

Applied Temperature

-10°C-55°C

Max Power

11KW

Power rating

10.5KW

Voltage

380-440 3 phase

Current

14A

Dimension

950*750*1050mm

Quality/ Safety Approval

ISO/CE/Rohs

Special Feature:

  • CNC machining structure process
  • Efficient absorption silica gel wheel
  • Control noise damping and shock absorption
  • Industrial flange for easy operation
  • Circuit breaker incorporated to minimize damage at high temperatures for electrical motor; heater and the drive wheel
  • Leakage protection safeguard for electrical motor; heater and the drive wheel
  • Unique seal design; Reduces air leakage
  • Dynamic balance design, ensures stable operation while moving
  • Able to operate in a wide range of temperatures from -50˚C + 55˚C heat
  • Electrical design in accordance with international standards
